Product
details
Gross weight
0.34 kg
Net weight
0.3 kg
EAN
5702423146642
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]
65 °C
Ambient temperature range [°C] [Min]
-40 °C
Ambient temperature range [°F] [Max]
149 °F
Ambient temperature range [°F] [Min]
-40 °F
Approval
CCC
CE
EAC
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
CMIM
LLC CDC EURO-TYSK
Contact function
SPDT
Contact rating
AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Differential [bar] [Max]
4 bar
Differential [bar] [Min]
0.7 bar
Differential [psi] [Max]
58 psi
Differential [psi] [Min]
10 psi
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP30
Enclosure rating Nema (~)
1
Equipment
Max. test pressure [bar] Pe
22 bar
Max. test pressure [psig]
319 psig
Max. Working Pressure [bar]
17 bar
Product

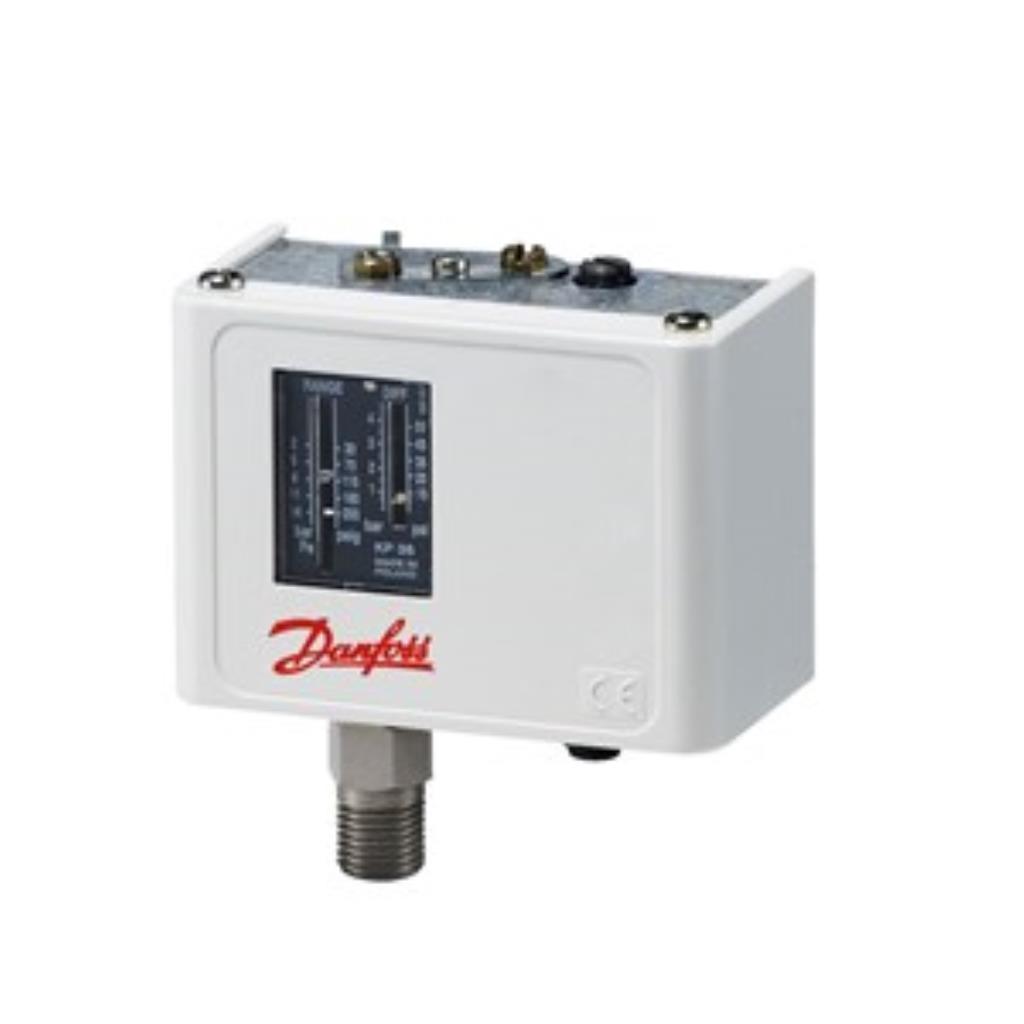

Name : danfoss pressure switch KP15
Product
details
Gross weight
0.48 kg
Net weight
0.42 kg
EAN
5702428011266
Amb. Temp. Note
80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]
65 °C
Ambient temperature range [°C] [Min]
-40 °C
Ambient temperature range [°F] [Max]
149 °F
Ambient temperature range [°F] [Min]
-40 °F
Approval
BV
CCC
CE
DNV
EAC
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CMIM
LLC CDC EURO-TYSK
Contact function
SPDT
Contact rating
AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Differential left side [bar] [Max]
4 bar
Differential left side [bar] [Min]
0.7 bar
Differential left side [psi] [Max]
58 psi
Differential left side [psi] [Min]
10 psi
Differential right side [bar]
4 bar
Differential right side [psi]
58 psi
Electrical connection
Rubber cable gland
Electrical connection size
6-14 mm
EN 60947 electrical properties
Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties
Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP
IP44
Enclosure rating Nema (~)
2
Equipment
Identical product
060-124166
Lubricants compatibility
Oilfree applications
Max.test press.left side[bar]
35 bar
Max.test press.right side[bar]
35 bar
MWP left side [bar] Pe
17 bar
MWP left side [psig] Pe
245 psig
MWP right side [bar] Pe
35 bar
MWP right side [psig] Pe
510 psig
Oil free refrigerants
R134a
R513A
R515B
Packing format
Industrial pack
Pressure connection size
1/4
Pressure connection standard
DIN 8906
Pressure connection type
Flare
Pressure Male/Female
Male
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Dual Pressure Control
Product family name
KP Pressure switch
Product group
Switches and thermostats
Product name
Pressure switch
Quantity per packing format
32 pc
Refrigerant oil compatibility
Oilfree applications
R134a
R513A
R515B
Refrigerants
R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R449B
R515B
Regulation left side [bar]Pe [Max]
7.5 bar
Regulation left side [bar]Pe [Min]
-0.2 bar
Regulation left side range Pe
6 inHg - 108 psig
Regulation right side [bar]Pe [Max]
32 bar
Regulation right side [bar]Pe [Min]
8 bar
Regulation right side [psig]Pe [Max]
464 psig
Regulation right side [psig]Pe [Min]
116 psig
Reset function, left side
Auto
Reset function, right side
Auto
Serviceable
No
Type
KP15
UL approval file name
E31024
UL approved refrigerants
R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
