سوئیچ فشار جمع و جور و قابل تنظیم برای کاربردهای فرآیند کم تا متوسط. فنر دیسکی Nega-Rate® Belleville برای پایداری نقطه تنظیم و مقاومت در برابر لرزش. انتخاب گسترده ای از مواد مرطوب ، بدنه و فضای داخلی از جنس استنلس استیل 316 ، به علاوه برقی که ضد انفجار دارای مهر و موم شده است و این سوئیچ را برای کاربردهای فرآیند شیمیایی ایده آل می کند.
Product Description

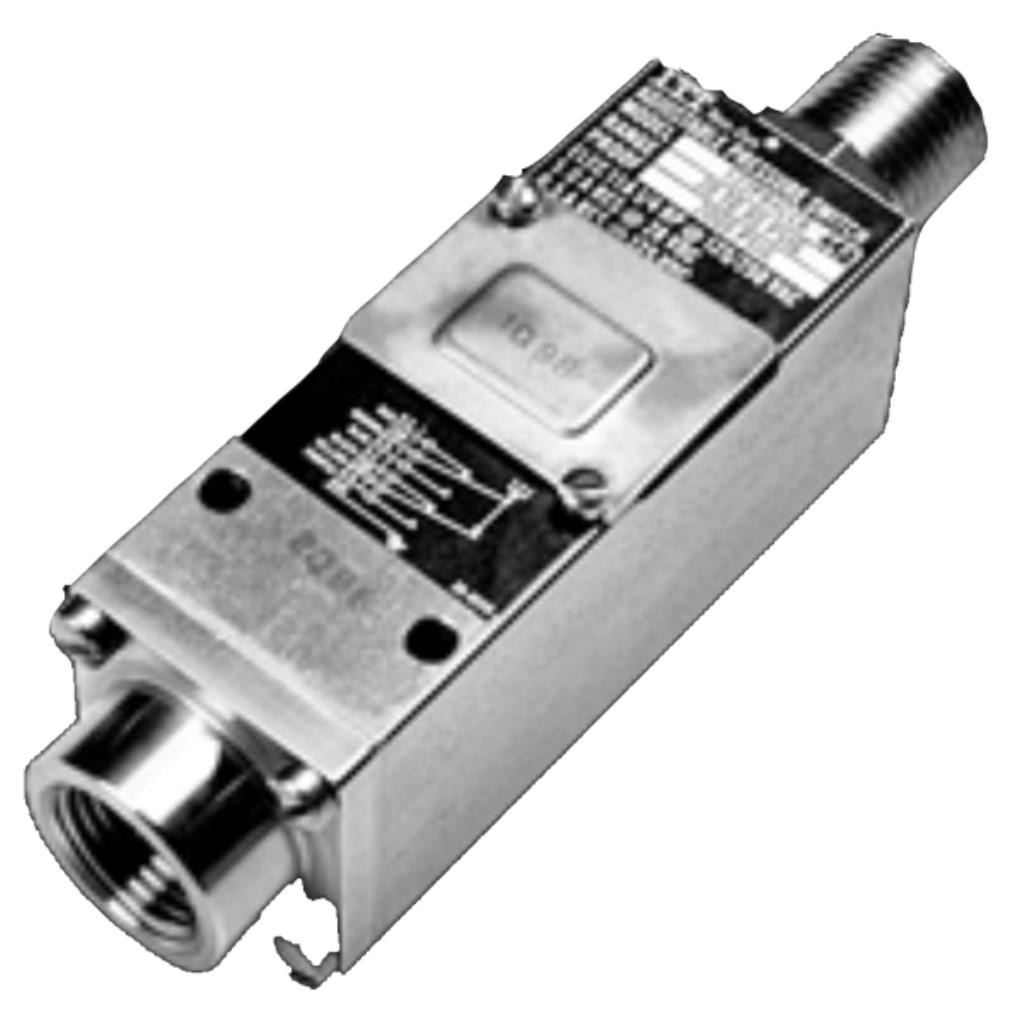

Compact, adjustable pressure switch for low to mid-range process applications. Efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance. Wide selection of wetted materials, 316 stainless steel body and interior, plus hermetically sealed explosion-proof electrical make this switch ideal for chemical process applications.
Specifications
Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., FM Approval and CSA InternationalElectrical Connection: 1/2 NPT male conduit connection with PVC insulated 18 AWG, 18” long leadsPressure Connection: 1/2 NPT FemaleTemperature Range*Ambient: -40°F to +180°F (-40°C to +82°C)Media: -40°F to +250°F (-40°C to +121°C)Adjustment: Internal, slotted adjustment nut with range scaleShipping Weight: Approximately 2 pounds
*Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings.
