کاربرد ها:
• برای محیط های گازی و
مایع که ویسکوزیته بالایی ندارند یا خیلی کریستالیزه نیستند و بر قطعات آلیاژ مس اثرات
خورندگی ندارند.
• پنوماتیک
• تکنولوژی گرمایش و تهویه مطبوع
• مهندسی پزشکی
ویژگی های خاص محصول:
• قابل اطمینان و مقرون به
صرفه
• طراحی بر اساس استاندارد EN 837-1
• اندازه اسمی 40، 50، 63، 80، 100 و 160
• رنج اندازه گیری تا 0 ... 400 بار
توضیحات:
گیج های فشار مدل 111 بر اساس سیستم اندازه گیری بوردون
تیوب، استوار شده است. هنگامی که فشار اِعمال می شود، انحراف لوله بوردون، که
متناسب با آن فشار است، از طریق یک لینک به صفحه مدرج منتقل شده و نمایش داده می
شود.
طراحی مدولار ترکیبات زیادی از متریال های ساخت محفظه،
اتصالات فرآیندی، اندازه های اسمی و رنج اندازه گیری را امکان پذیر می کند. به
خاطر این واریانس بالا، این ابزار برای استفاده در طیف گسترده ای از برنامه های
کاربردی در صنعت مناسب است.
برای نصب در پنل های کنترلی، بسته به اتصال فرآیند، می توان
فشار سنج ها را با یک فلنج نصب سطح یا یک حاشیه مثلثی و براکت نصب کرد.
نسخه استاندارد مدل 111 در حجم چندین میلیون دستگاه در سال
با هزینه مناسب در خطوط تولید مدرن تولید می شود.
Applications
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy
- PartsPneumatics
- Heating and air-conditioning technology
- Medical engineering
Special Features
- Reliable and cost-effective
- Design per EN 837-1
- Nominal size 40, 50, 63, 80, 100 and 160
- Scale ranges up to 0 ... 10bar
Descriptions

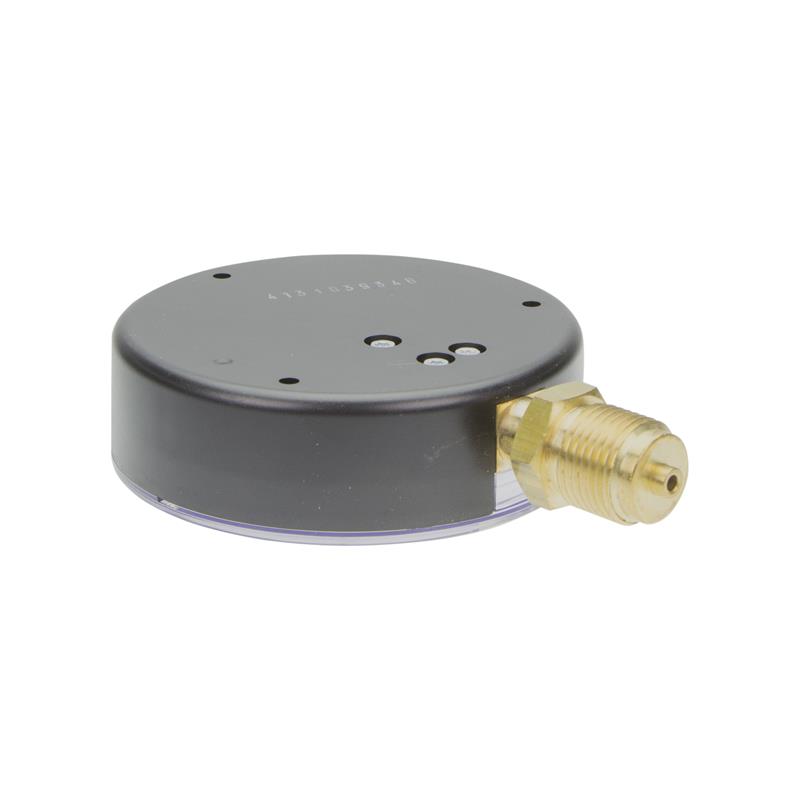

The model 111 pressure
gauges are based on the proven Bourdon tube measuring system. On
pressurisation, the deflection of the Bourdon tube, proportional to the
incident pressure, is transmitted to the movement via a link and indicated.
The modular design
enables a multitude of combinations of case materials, process connections,
nominal sizes and scale ranges. Due to this high variance, the instrument is
suitable for use in a wide range of applications within industry.
For mounting in
control panels, the pressure gauges can, depending on the process connection,
be fitted with a surface mounting flange or with a triangular bezel and
mounting bracket.
The standard version of the model 111 is
manufactured, cost-optimised on modern production lines, in volumes of several
million instruments per year.
